Manual Ceramic ball Valve
PRODUCT DETAILSㄩ


Characteristics

This valve  is application as on-off or pipelines with high-hardness grains or wwith both soft grns and corrosive medium .Its nominal pressure  is 1.6Mpa ,and applicable temperature ≒200⊥ ﹝And air supply pressure 0.6-0.8 Mpa .All mediumcontacting parts are made of structure ceramic ,featuring extremely high chemical stability and hardnessㄗRockwell Hardness HRC90 0ㄘㄛOnly next to diamond .Therefor ,this valve  has  extremely strong resistance to abrasion ,corrosion and erosion ,good heat insulation and small thermal expansion the ball body is made with advanced grinding equipment and process with high每precision ball roundness and good surface quality ,and after facing 每up with the valve seat ,a good seal ability can be obtained by means og self-lubrication of Zr02CERAMIC .thanks to the ceramic*s strong resistance to abrasion ,this valves is durable and extremely reliable with a long service life being 2-4 times of that Ti alloy and Monel  valves

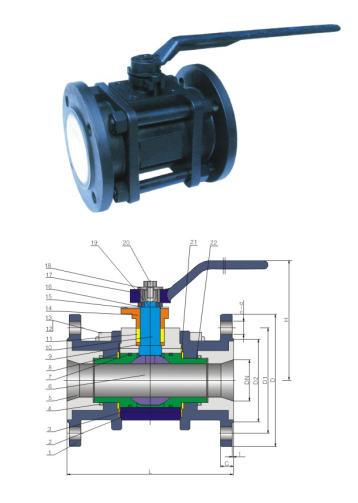

Manual ceramic ball valve

Item

Name

Material

Item

Name

Material

1

Side valve cover

WCB

12

Hex Nut

8撰

2

Middle body

WCB

13

Equal-length stud

outsourcing

3

Middle body sleeve

Engineering ceramic

14

Packing gland

WCB

4

o-ring

Fluorine rubber

15

spacer

Q 235white zinc plating



5

Flange sleeve

Engineering ceramic

16

Circlip for shaft

65Mn

6

ball

Engineering ceramic

17

Handle

outsourcing

7

o-ring

Fluorine rubber

18

Gasket

Q235

8

Dish spring

50CrVA

19

Socke head cap screw

35#

9

washer

304

20

Hex bolts

B7

10

stem

2Cr13

21

Big Washer

PTFE

11

packing

PTFE

22

seat



Application specification

Design and manufacture

CB/T12224

Connection end dimension

Structural length

Manufacturer*s standard

Flange dimension

JB/T 79.1

Inspection and test

GB/T 9092

Material

Carbon steel

GB/T 12229

Stainless steel

GB/T 12230

Mark

GB/T 12220

Supply

GB/T 12252
