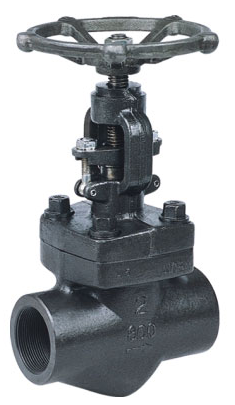

Forged steel globe valve Series:Globe Valve
ZC Forged Steel Globe Valves are generally available with Plug Type Disc, which is designed to give leak tight seating over a long period of in built wear life. All Globe Valve stem is made from solid one piece construction. The yoke bush of Globe Valve has a long thread engagement for accurate stem alignment. The standard range of ZC Globe Valves covers sizes of up to 2 (DN50) and pressure rating up to 1500 class in Regular (Reduce) bore & Standard (Full bore) design.
Material List
|
Item |
Part name |
CS to ASTM |
AS to ASTM |
SS to ASTM¡¡ |
|||
|
A105 |
F22 |
F304(L) |
F316(L)¡¡ |
||||
|
1 |
Body |
A105 |
A182F22 |
A182F304(L) |
A182F316(L) |
||
|
2 |
Disc |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
||
|
3 |
Stem |
A182F6 |
A182F304 |
A182F304(L) |
A182F316(L)¡¡ |
||
|
4 |
Gasket |
SS+Flexible graphite |
316+PTFE |
||||
|
5 |
Bonnet |
A105 |
A276f304 |
A276F304(L) |
A276F316(L) |
||
|
6 |
Bolt |
A193B7 |
A193B16 |
A193B8 |
A193B8M |
||
|
7 |
Pin |
A276420 |
A276 304 |
||||
|
8 |
Gland |
A276410 |
A182F304(L) |
A182F316(L) |
¡¡ |
||
|
9 |
Gland eyebolt |
A193B7 |
A193B16 |
A193B8 |
A193B8M |
||
|
10 |
Gland flange |
A216WCB |
A351CF8 |
¡¡ |
|||
|
11 |
Nut |
A1942H |
A1944 |
A1948 |
A1948M¡¡ |
||
|
12 |
Yoke nut |
A276410¡¡ |
|||||
|
13 |
Lock Nut |
A1942H |
A1944 |
A1948 |
A1948M¡¡ |
||
|
14 |
Nameplate |
SS |
|||||
|
15 |
Handwheel |
A197¡¡ |
|||||
|
16 |
Packing |
Flexible graphite |
PTFE |
||||
|
Suitable medium |
W.O.G etc |
W.O.G etc |
Nitric acid,Acetic acid etc¡¡ |
||||
|
Suitable temperature |
¡ª29¡æ¡«425¡æ |
¡ª29¡æ¡«550¡æ |
¡ª29¡æ¡«200¡æ |
||||
|
Size(MM)&Weight(KG) |
|||||||||
|
NPS |
Red. bore |
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
¡¡ |
|
Full bore |
¡¡ |
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
|
|
L |
79 |
79 |
92 |
111 |
120 |
152 |
150 |
200 |
|
|
H(Open) |
166 |
166 |
171 |
207 |
240 |
258 |
330 |
355 |
|
|
W |
65 |
65 |
65 |
125 |
160 |
160 |
180 |
200 |
|
|
Weight |
Bolted |
1.9 |
1.9 |
2.1 |
3.5 |
6 |
7.5 |
11.4 |
14.6 |
|
Welded |
1.7 |
1.7 |
1.9 |
3.3 |
5.2 |
6.8 |
10.6 |
13.8 |
|
|
Forged steel globe valve 900Lb - 1500Lb |
|||||||||
|
¡¡ |
|||||||||
|
Material List |
|||||||||
|
Item |
Parts Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
|||||
|
A105 |
F22 |
F304(L) |
F316(L) |
||||||
|
1 |
Body |
A105 |
A182F22 |
A182F304(L) |
A182 F316(L) |
||||
|
2 |
Disc |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
||||
|
3 |
Stem |
A182 F6 |
A182 F304 |
A182 F304(L) |
A182 316(316(L) |
||||
|
4 |
Gasket |
316+Flexible graphite |
316+PTFE |
||||||
|
5 |
Bonnet |
A105 |
A276304 |
A276304(L) |
A276F316(L)¡¡ |
||||
|
6 |
Bolt |
A193B7 |
A193B16 |
A193B8 |
A193B8M¡¡ |
||||
|
7 |
Pin |
A276420 |
A276 304 |
||||||
|
8 |
Gland |
A276410 |
A182F304(L) |
A182F316(L) |
|||||
|
9 |
Gland eyebolt |
A193B7 |
A193B16 |
A193B8 |
A193B8M |
||||
|
10 |
Gland flange |
A216WCB |
A351CF8¡¡ |
||||||
|
11 |
Nut |
A1942H |
A1944 |
A1948 |
A1948M |
||||
|
12 |
Yoke nut |
A276420 |
|||||||
|
13 |
Lock nut |
A1942H |
A1944 |
A1948 |
A1948M¡¡ |
||||
|
14 |
Nameplate |
SS |
|||||||
|
15 |
Handwheel |
A197¡¡ |
|||||||
|
16 |
Packing |
Flexible graphite PTFE¡¡ |
|||||||
|
Suitable medium |
W.O.G etc |
W.O.G etc |
Nitric acid,Acetic acid etc¡¡ |
||||||
|
Suitable temperature |
¡ª29¡æ¡«425¡æ |
¡ª29¡æ¡«550¡æ |
¡ª29¡æ¡«200¡æ¡¡ |
||||||
|
Note:Other material are available upon request. |
|||||||||
|
CS=Carbon steel;AS=Alloy steel;SS=Stainless steel; |
|||||||||
|
¡¡ |
|||||||||
|
Size(MM)&Weight(KG) |
|||||||||
|
NPS |
Red.bore |
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
¡¡ |
|
Full bore |
¡¡ |
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
|
|
L |
92 |
111 |
111 |
120 |
152 |
150 |
200 |
220 |
|
|
H(Open) |
171 |
207 |
207 |
240 |
258 |
330 |
355 |
370 |
|
|
W |
65 |
125 |
125 |
160 |
160 |
180 |
200 |
240 |
|
|
Weight |
Bolted |
2.2 |
3.7 |
3.6 |
6.8 |
7.6 |
11.6 |
15 |
21.9 |
|
Welded |
2 |
3.4 |
3.3 |
6 |
5.6 |
10.3 |
14.2 |
18 |
|
