Cast steel trunnion mounted ball valve

PRODUCTS

YOUR LOCATION：HOME >> PRODUCTS >> ball valve Series >> Cast steel trunnion mounted ball valve

PRODUCT DESCRIPTION：

PRODUCT DETAILS：

Class 150~1500 cast steel trunnion ball valve

Bolted cover,Two-piece or three-piece Body,fixed Ball
Full or Reduced bore,Blowout Proof Stem
Fire safe and Anti static
Dual seat with injection and drain & outlet
ASTM A216 WCB,A351 CF8,A351 CF8M,
A351 CF3,A351 CF3M,A351 CN7M

Standards compliance

Design and Manufacture: API 6D
Face to face(end to end): API 6D
Flanged connection:2"~24" to ANSI B16.5
Fire-safe: API 607,API 6FA
Butt welded end: ANSI B16.25
Test and inspection: API 6D

Materials
NO.	Part name	Material
21	Drain plug	Carbon steel/stainless steel
20	Worm gear/actuator	Manufacture?standard
19	Antistatic device	Stainless steel
18	Constact spring	17-7PH/inconel-Alloy
17	O-ring	Viton
16	Ball guide bush	Carbon steel/SS
15	Cover washer	PTFE/NYLON
14	Thrust washer	Graphite PTFE/NYLON
13	Stem	CS+Plated/stainless steel

NO.	Part name	WCB	LCB
12	Socket head screw	A193 Gr B7	A320 Gr L7
11	Stud and nut	A193 Gr B7/A194 Gr 2H	A320 Gr L7/A194 Gr 4
10	Gasket	PTFE/SPIRAL WOUND	PTFE/SPIRAL WOUND
09	Packing	PTFE/Graphite	Graphite/PTFE
08	Seat ring	PTFE/RPTFE	PTFE/RPTFE
07	Sealing plate	A216 Gr WCB	A352 Gr LCB
06	Stem retainer	A216 Gr WCB	A352 Gr LCb
05	Ball guide	A105N+Nip	A182 F304
04	Ball seat	A182 F304	A182 F304
03	Ball	A182 F6a	A182 F304
02	R-body	A216 Gr WCB	A352 Gr LCB
01	L-body	A216 Gr WCB	A352 Gr LCB

NO.	Part name	CF8	CF8M
12	Socket head screw	A193 Gr B8	A193 Gr B8
11	Stud and nut	A193 B8/A194 8	A320 B8M/A194 B8
10	Gasket	PTFE/SPIRAL WOUND	PTFE/SPIRAL WOUND
09	Packing	GRAFOIL	GRAFOIL
08	Ball seat	PTFE/RPTFE	PTFE/RPTFE
07	Sealing plate	A315 Gr CF8	A315 Gr CF8M
06	Stem retainer	A315 Gr CF8	A315 Gr CF8M
05	Ball guide	A315 Gr CF8	A315 Gr CF8M
04	Seat ring	A182 F304	A182 F316
03	Ball	A315 Gr CF8	A315 Gr CF8M
02	R-body	A315 Gr CF8	A315 Gr CF8M
01	L-body	A315 Gr CF8	A315 Gr CF8M

Class 150~1500 cast steel fixed ball valve

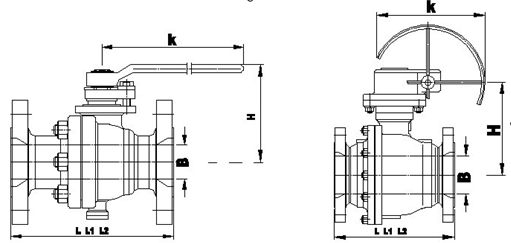

Dimensions
Class 150
Size			inch				6					8					10				12					14					16				18				20				24
L-RF			mm				394					457					533				610					686					762				864				914				1067
L1-BW			mm				457					521					559				635					762					838				914				991				1143
L2-RTJ			mm				406					470					546				622					698					725				876				927				1079
B			mm				152					203					254				305					337					687				438				489				591
H			mm				270					315					360				410					425					475				525				590				695
K			mm				300					300					400				400					600					600				600				600				750
WT			Kg				110					160					320				448					567					850				1050				1350				1750
Dimensions
Class 300
Size					inch				6					8				10					12					14				16				18				20				24
L,L-RF~BW					mm				403					502				568					648					762				838				914				991				1143
L2-RTJ					mm				419					518				584					664					778				854				930				1010				1165
B					mm				152					203				254					305					337				387				438				489				591
H					mm				285					345				380					345					450				495				570				615				710
K					mm				300					300				400					400					600				600				600				750				750
WT					Kg				128					210				345					560					780				1020				1200				1625				2285
Dimensions
Class 600
Size	inch		2			2-1/2				3			4			6				8				10			12			14				16				18				20				24
L,L-RF~BW	mm		292			330				356			432			559				660				787			838			889				991				1092				1194				1397
L2-RTJ	mm		295			333				359			435			562				664				791			841			892				994				1095				1200				1407
B	mm		51			64				76			102			152				203				254			305			337				387				438				489				591
H	mm		190			230				265			295			300				355				415			455			505				515				600				640				735
K	mm		250			250				300			300			400				400				400			600			600				600				750				750				750
WT	Kg		34			40				45			98			200				395				555			840			1015				1220				1350				2080				2745
Dimensions
Class 900
Size		inch		2				2-1/2			3				4				6			8			10				12				14				16				18				20
L,L-RF~BW		mm		368				419			381				457				610			737			838				965				1029				1130				1219				1321
L2-RTJ		mm		371				422			384				460				613			740			841				968				1038				1140				1323				1334
B		mm		51				64			76				102				152			203			254				305				324				375				425				473
H		mm		210				250			285				280				360			455			510				525				595				650				685				695
K		mm		250				300			300				400				400			600			600				600				750				750				750				800
WT		Kg		45				50			72				130				235			495			690				1050				1350				1750				2300				2850

Dimensions
Class 1500
Size	inch	2	2-1/2	3	4	6	8	10
L,L-RF~BW	mm	368	419	470	546	706	832	991
L2-RTJ	mm	371	422	473	549	711	841	1000
B	mm	51	64	76	102	146	184	241
H	mm	230	260	290	305	370	470	520
K	mm	300	300	400	400	600	600	750
WT	Kg	52	74	98	144	320	695	960
