Floating ball valve
PRODUCT DETAILS£º

class 150~900Lb forged steel trunnion ball valve Series:Ball Valve




1.Forged ball valve feature
forged ball valve,the forging material can ensure sufficient rigidity and strength under maximum rated operation pressure without inherent flaw of cast. Enough wall thikness of separate body and adaptation of high strength tie bolts are convenient for valve maintenance and sufficient to bear the stress of pipe.The internal parts of valve are carefully designed and selected to ensure reliability under all kinds of work condition.

2.Anti-fire safe design
When the trunnion ball valve be used normally,its sealed by seat and ball surface,seat retainer sealed by O-ring and body,this is soft sealed and reliable sealing.When the seat and O-ring are burnt,the seat retainer and body will be sealed by expanded graphite.Thus act anti-fire safe purpose.

3.Anti-static device
In order to prevent friction among ball,stem and PTFE that generates static electricity which may light the combustibles and explosives that cause an accident,in this ball valve,static-conduction spring is set between the stem and the ball,the stem and the body.Thus static electricity is conducted to ground and system safety is secured.

4.Free leakage of body Sealed construction
The connective position of valve body and bonnet is double sealed by gasket and O-ring,on this base,such factors as fire,high temperature,shock and uneven opening or closing of the torque all can't induce external leakage.

5.Low torque in operation
The self-lubricated bearings are installed at the friction of stem,resulting in wear resistance,fiexibilityof operation and low torque.

6. Double block&bleed(DBB)
When ball is full open or close position,the transmitter substance in center cavity of body can be released by drainage and emptying devices.In addition,the over loaded pressure in the center cavity of valve can be released to low pressure end by self relief seat.

7.Emergency sealing
Compound injection holes are designed and compound injection valves are installed at locations of stem/cap and body support of side valve.When sealing of stem or seat is damaged to induce leakage,the compound can be used to do the second time sealing.A concealed check valve is installed in side of each compound injection valve to prevent compound from out flowing due to the action of transmitter substance.The top of the compound injection valve is the connector for fast connection with compound injection gun.

8.Extension stem
For the underground installed valve,the stem can be lengthened and for the convenience of operation the corresponding compound injection nozzle and drainage valve can be extended to the top of valve.

9.Automatic body cavity relief
When the body pressure going up un-normally as the unstable factor,the trunnion ball valve downstream seat will be pushed by unnormalpressure,and the release the un-normally pressure automatically,it doesn't damage to the sealing of upstream seat.

10.Various driving types
The top pad of valve designed according to ISO 5211,which is convenient for connection and exchange of various drivers.The common driving types are manual,electrical,pneumatic and pneumatic/hydraulic


FORGED STEEL trunnion mounted Ball Valve CLASS 150~1500

Bolted cover or welded cover,three-piece Body,fixed Ball
Full or Reduced bore,Blowout Proof Stem
Fire safe and Anti static
Dual seat with injection and drain & outlet
ASTM A105N,A182 F304,A182 F316,A182 F304L,A182 F316L

Standards compliance
Design and manufacture: ANSI B16.34,API 608,API 6D,BS5351
Face to face dimensions: ANSI B16.10,API 6D
Flanged connection: ANSI B16.5
Butt welded: ANSI B16.25
Fie-safe: API 607~API 6FA
Test and inspection: API 598,API6D

Standard material specifications

Part name

Material

Body

A105

A182 F304

A182 F316

A182 F304L

A182 F316L

Body cap

A105

A182 F304

A182 F316

A182 F304L

A182 F316L

Ball

A105+Nip

A182 F304

A182 F316

A182 F304L

A182 F316L

Stem

A105+Nip

A182 F304

A182 F316

A182 F304L

A182 F316L

Seat

A105+Nip

A182 F304

A182 F316

A182 F304L

A182 F316L

Seat ring

PTFE/RPTFE/NYLON

Fixed turnnion

A105+Nip

A182 F304

A182 F316

A182 F304L

A182 F316L

O-ring

VITON

VITON

VITON

VITON

VITON

Contact spring

17-7PH/In conel

In conel

In conel

In conel

In conel

Cover bolt

A193 B7

A193 B8

A193 B8M

A193 B8M

A193 B8M

Cover nut

A194 2H

A194 8

A194 8M

A194 8M

A194 8M

Bearing

SF-1

SF-1

SF-1

SF-1

SF-1

CLASS 150lb~1500lb FORGED STEEL trunnion mounted Ball Valve

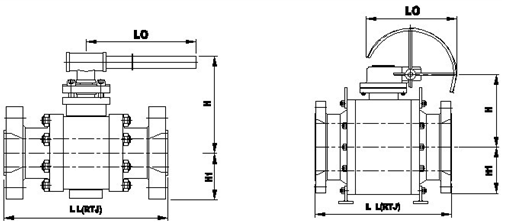

Dimensions & weights

Class 150lb

Size

inch

2

3

4

6

8

10

12

14

16

18

20

L(RTJ)

mm

178

203

229

394

457

533

610

686

762

864

914

H

mm

153

195

213

500

568

605

662

725

770

970

935

H1

mm

139

178

191

220

289

318

382

430

470

489

528

L0

mm

400

600

850

400*

400*

400*

400*

800*

800*

600*

500*

Weight

mm

30

50

90

203

289

450

588

676

864

764

911


Dimensions & weights

Class 300lb

Size

inch

2

3

4

6

8

10

12

14

16

18

20

L

mm

216

283

305

403

502

568

648

762

838

914

911

L(RTJ)

mm

232

299

321

419

518

584

664

778

854

930

1010

H

mm

153

195

213

500

569

605

662

725

770

970

935

H1

mm

139

178

191

220

289

318

382

430

470

489

528

L0

mm

600

1250

1300

400*

400*

400*

400*

800*

800*

600*

500

Weight

mm

30

50

90

203

289

450

588

676

864

764

911


Dimensions & weights

Class 600lb

Size

inch

2

3

4

6

8

10

12

14

16

18

20

L

mm

292

356

432

559

660

787

838

889

991

1092

1194

L(RTJ)

mm

295

359

435

562

663

790

841

892

994

1095

1200

H

mm

153

195

213

500

569

645

702

750

815

970

1065

H1

mm

119

145

180

220

289

318

382

430

470

489

561

L0

mm

600

1250

1300

400*

400*

457*

457*

800*

800*

600*

600*

Weight

mm

32

64

122

267

521

773

1118

1700

1970

1218

1646


Dimensions & weights

Class 900lb

Size

inch

2

3

4

6

8

10

12

14

16

18

20

L

mm

368

381

457

610

737

838

965

1029

1130

1210

1321

L(RTJ)

mm

372

384

460

613

780

841

968

1038

1140

1232

1334

H

mm

162

205

239

591

700

700

820

950

990

1030

1200

H1

mm

119

145

180

213

254

327

368

442

483

523

615

L0

mm

600

1250

1300

450*

600*

750*

750*

600*

600*

600*

600*

Weight

mm

48

78

138

275

547

847

1224

1676

2083

2694

3515


Dimensions & weights

Class 1500lb

Size

inch

2

3



8

10

12

14

16

18

20

L

mm

368

470

546

4

6

991

1130

1257

1384

1537

1664

L(RTJ)

mm

372

473

549

711

841

1000

1146

1276

1407

1559

1686

H

mm

197

254

291

655

660

735

860

950

1065

1235

1275

H1

mm

119

145

180

213

278

384

440

442

483

576

615

L0

mm

600

1250

1300

760*

450*

450*

660*

600*

750*

750*

750*

Weight

mm

55

97

162

328

668

936

1408

1861

2392

3220

4491
